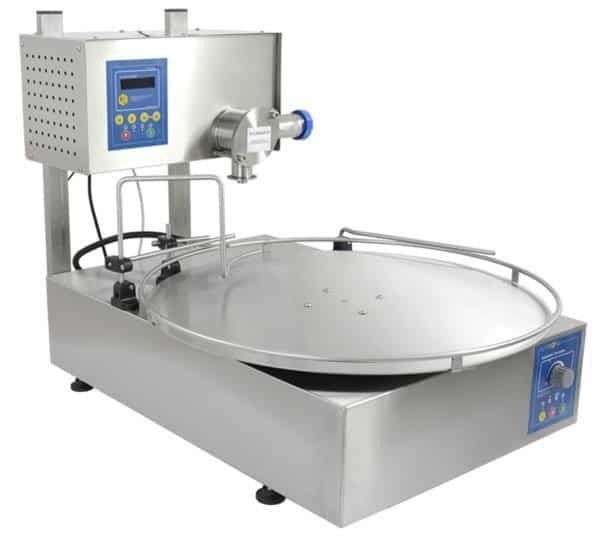

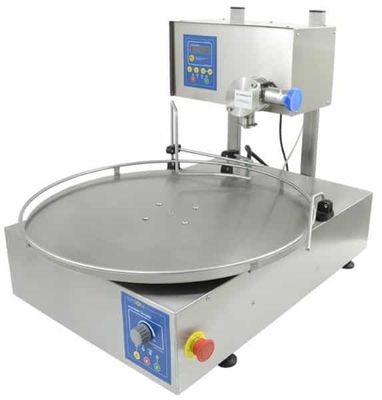

Honey bottler with mini turntable

By reducing the dimensions of the table and eliminating the stands, the dimensions of the device have been significantly reduced, enabling its use also in workshops with a smaller area.

The compact dimensions facilitate the work of one person during the process of filling jars with honey.

Device dimensions:

length: 810mm
base width: 500mm
height: 635mm
turntable diameter: 600mm
Dispenser technical data:

self-priming, low-speed pump with silicone impeller
computer controlled device
Fills about 350 jars 500 g / h (depending on the type and density of honey)
filling accuracy:
+/- 1% (in the range of 0 - 1200g),
+/- 1.5% (in the range above 1200g).
filling range from 50g to 45kg
also for use as a pump
all parts in contact with honey are made of stainless steel or food grade plastic
230V / 270W power supply.

Below, we explore the various uses and benefits of bottling machines across these industries, drawing insights from the provided sources.

Honey Processing Industry

Uses

• Automated Filling: Bottling machines like the Lyson Automatic Turn Table with Bottler are designed for the precise and automated filling of honey into jars or containers. This process includes pumping, measuring, and dispensing honey or creamed honey into containers of various sizes.
• Container Handling: These machines are capable of handling different types of containers, including round glass jars, and are equipped with features to adjust for different jar sizes.

Benefits

• Efficiency: The automation of the filling process allows for the filling of approximately 350 1 lb jars per hour, depending on the type and density of honey, significantly increasing production speed.
• Precision: The bottler is programmable to dispense specific amounts of honey, from 4g to 45kg, ensuring consistent product quantity in each container.
• Versatility: While specifically designed for honey, these machines can also handle creamed honey before setting, demonstrating versatility in product handling.
• Hygiene and Safety: Components in direct contact with honey are made of stainless steel or food-grade plastic, ensuring hygiene and safety standards are met.

Able to be used in other food and beverage jarring applications also.
