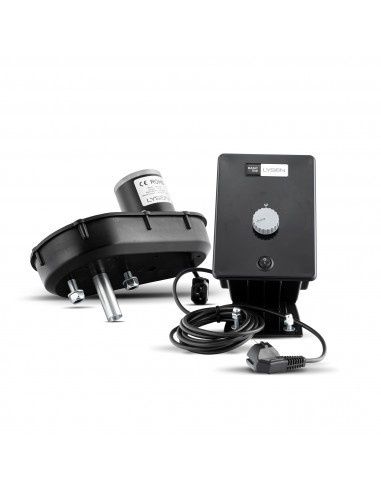

Electric Drive Basic to Convert Manual Extractors

SET_BASIC

Electric drive for BASIC Line and MINIMA Line

Honey extractors, 15 mm shaft



Thanks to the electric drive, we can easily and inexpensively change the drive in our honey extractor from manual to electric. The engine is powered by 230V with a power of 120W. The MDD-01 controller used is a simple, manual potentiometer for changing the rotation speed. Just unscrew a few screws to remove the manual drive and install the electric one. We also offer a drive for honey extractors from other manufacturers thanks to a special adapter. Additionally, the drives have a 2-year manufacturer's warranty.



EXECUTION:

power supply: 230 V

control – MDD-01 controller (manual potentiometer)



CONTROL DIMENSIONS:

Width: 140 cm

Length: 250 cm

Height: 100 cm

The set includes: control, drive, set of screws



SIZE OF THE PACKAGE:

Width: 335 cm

Length: 335 cm

Height: 185 cm

Weight: 4 kg



Installation instructions for the electric drive in manual honey extractors

1. Removing the manual drive:
2. a) unscrew the screws securing the brake and manual drive and remove it
3. b) dismantle the hinges on the right side
4. c) tighten the previously unscrewed hinges one eye further
5. d) tighten the upper beam using an M8 butterfly (included)
6. Installation of the electric drive:
7. a) install and tighten the casing with the motor
   b) install and tighten the controller;
   c) plug the holes in the plexiglass;
   d) connect the power cable to the controlhttps://youtu.be/Dl05gW0LP6w
