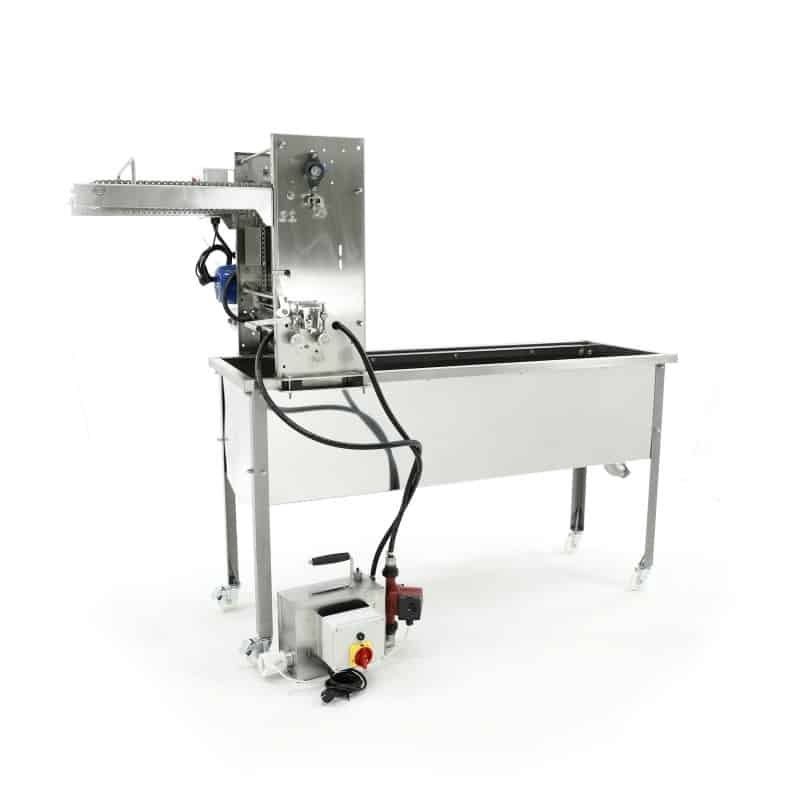

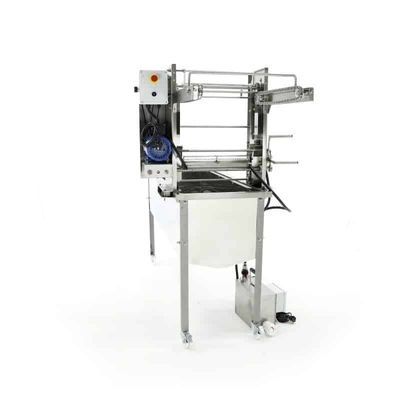

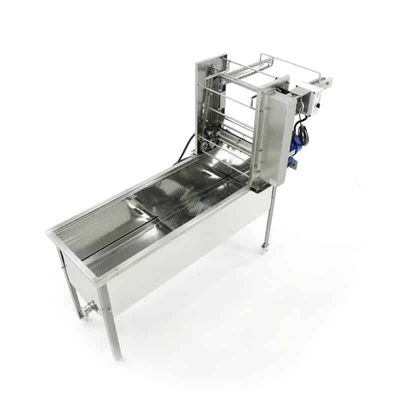

Experience the pinnacle of efficiency and precision in honey extraction with the Lyson Minima Line Uncapping Machine. Designed with the modern beekeeper in mind, this state-of-the-art machine features heated blades and a chain feed uncapper, ensuring a seamless and effective uncapping process.

Key Features:

• Heated Blades:¬†The machine's heated blades guarantee a smooth and clean cut through the wax cappings, minimizing honey loss and maximizing yield.
• Chain Frame Feeder:¬†This innovative feature allows for continuous, hands-free feeding of frames, significantly speeding up the uncapping process.
• Sturdy Tub: The robust tub provides stability and ease of use, ensuring that the machine remains secure during operation. It includes a perforated stainless steel sieve for a first level filtration of cappings honey.
• 230V Power Supply:¬†Compatible with standard electrical outlets, the machine is both powerful and energy-efficient.

Upgrade your beekeeping operation with the Lyson Minima Line Uncapping Machine and enjoy unparalleled efficiency, precision, and ease of use.

Uncapping machine supporting structure: acid-proof stainless steel

Uncapping drive:

- power supply - 230V

- engine - 0.25 kW

- engine speed - 1,400 rpm



Closed circuit kife heating system consists of:

- stainless steel tank with a heater

- lines supplying liquid to the knives

- control box

- dimensions: 420 x 500 x 390 mm

- power supply: 230 V

- heating power: 2000 W

- weight: 8 kg



Uncapping machine dimensions with wheels:

- length - 600 mm

- width - 920 mm

- height - 700 mm

- weight - 57 kg



Dimensions of uncapper with chain feeder:

- length - 800 mm

- width - 920 mm

- height - 700 mm

- weight - 57 kg



Frame construction:

- acid-resistant stainless steel

frame dimensions:

 length - 1 570 mm

- width - 615 mm

- height - 1130 mm

- weight - 47 kg



Total weight:

- 104 kg + 8 kg closed circuit

- 104 kg + steam generator 2.5 kg



Overall dimensions:

- table with slides: length 1800, width 900, height 1830 mm

- table with chain feeder: length 2000, width 900, height 1830 mm

Uncapping machine capacity: 4 to 6 frames per minute
