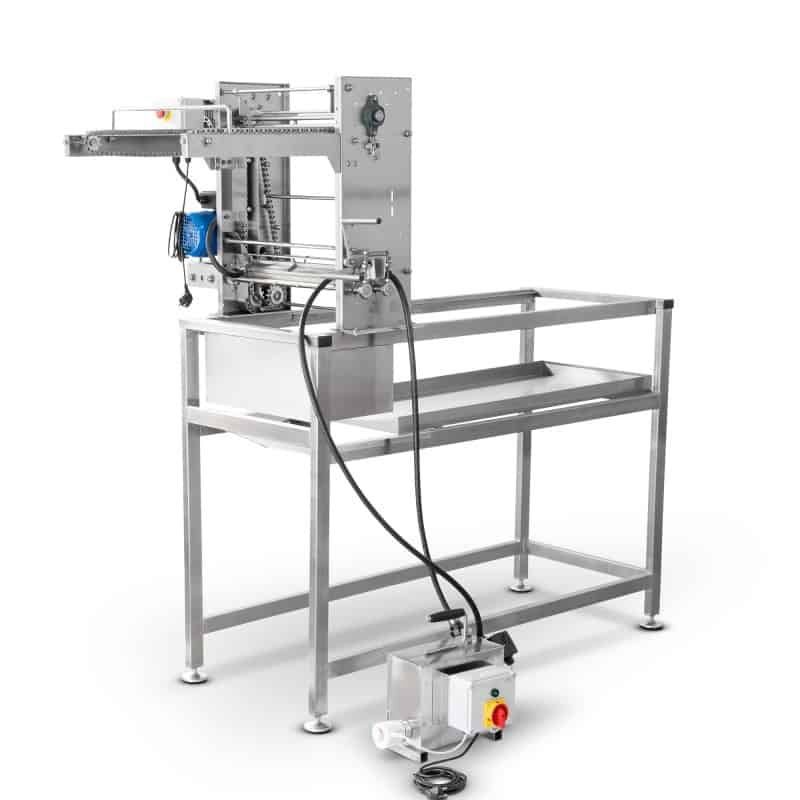

Uncapping machine with closed circuit, 230V, with chain feeder - MINIMA LINE

You can be sure that using professional uncapping machines can really improve work in your apiary. Thanks to our solutions, you will increase the pace of work and achieve a high degree of efficiency - while maintaining the quality of the honey produced at the highest level. You will also save energy and time for your entire beekeeping crew. The proposed uncapping machines on a frame are one of many innovative devices manufactured by LYSON. We are a global supplier of professional equipment for beekeepers.

We make uncapping tables using the highest quality stainless steel. It is fully resistant to acids and does not react chemically with honey. We also equipped our devices with a drive with an engine speed of 1,400 rpm.

The essence of the device is the effective uncapping of frames, thanks to special knives that cut out the top layer of wax using efficient movements. This uncapping table is a functional and innovative device that allows for efficient and quick operation.

For many years, we have been making sure that the devices introduced to LYSON's offer meet the highest industry standards. This is possible thanks to the experienced design team developing new modern solutions produced by our company.

Uncapping machine supporting structure:

• acid-resistant stainless steel

Uncapping drive:

• power supply - 230V

• engine - 0.25 kW

• engine revolutions - 1,400 rpm

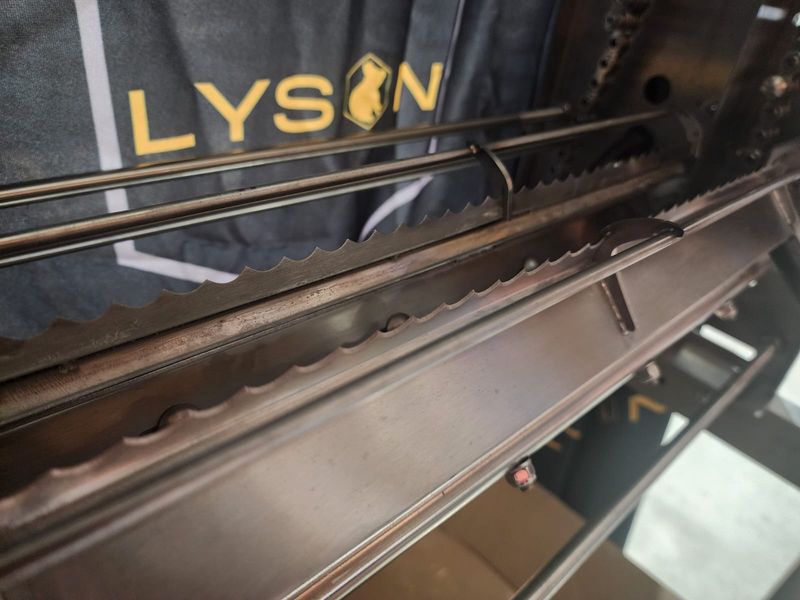

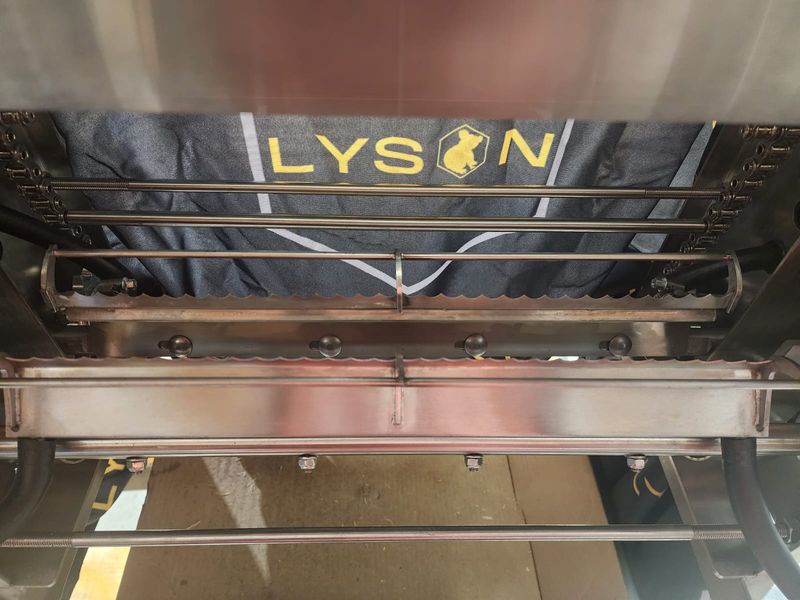

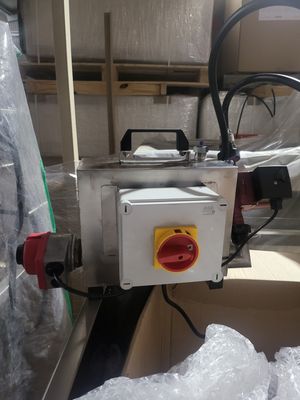

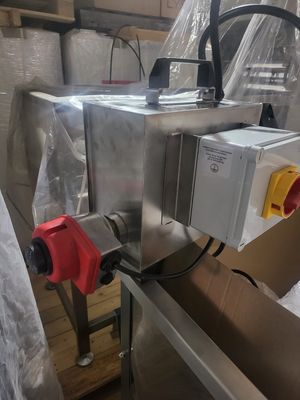

Heated blades: closed circuit

• consists of:

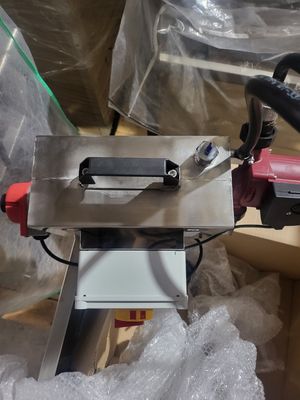

- stainless steel tank with a heater

- hose supplying liquid to the knives

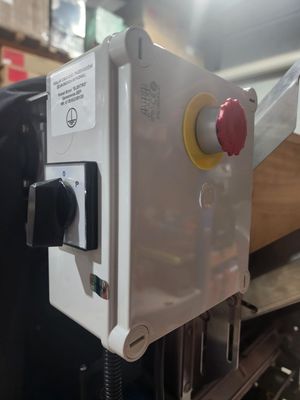

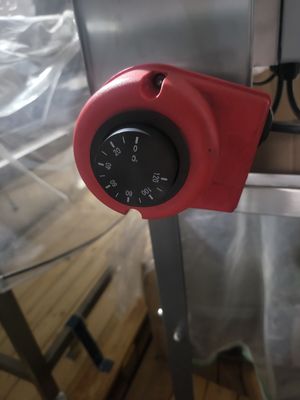

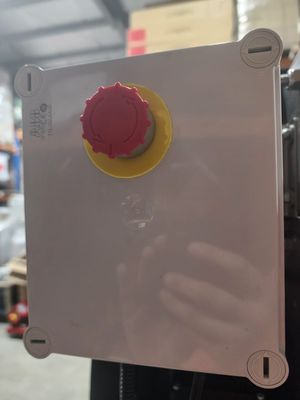

- control box

• dimensions: 420 x 500 x 390 mm

• power supply: 230 V

• heating power: 2000 W

Uncapping machine dimensions:

• length - 900 mm

• width - 800 mm

• height - 700 mm

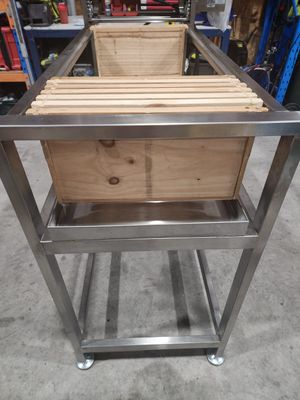

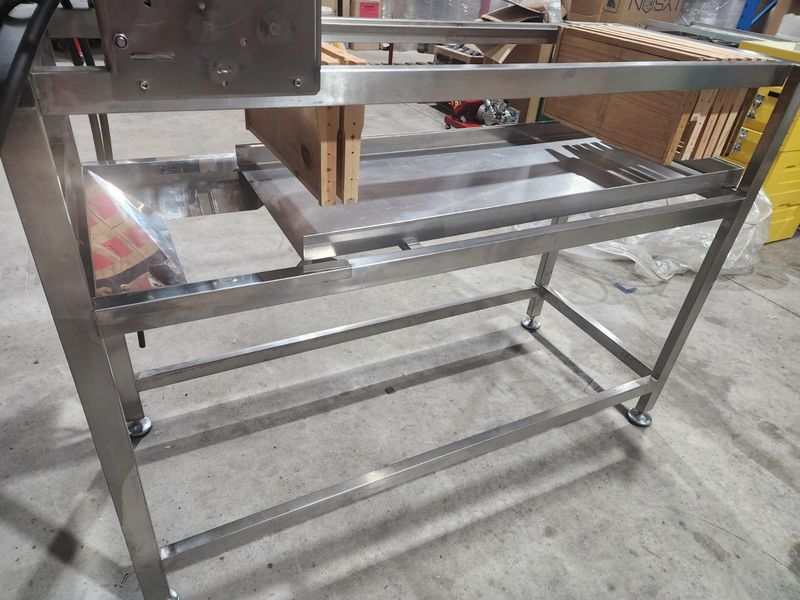

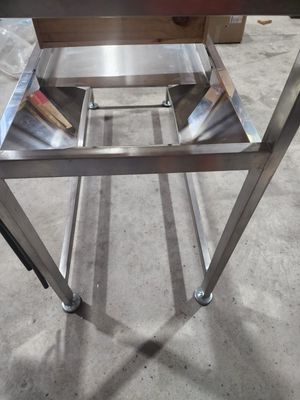

Table construction:

• stainless steel

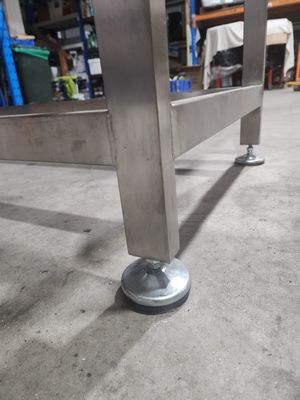

• legs - powder coated

• valve - stainless steel flap valve

• stainless screens - 2 pcs.



Overall dimensions:

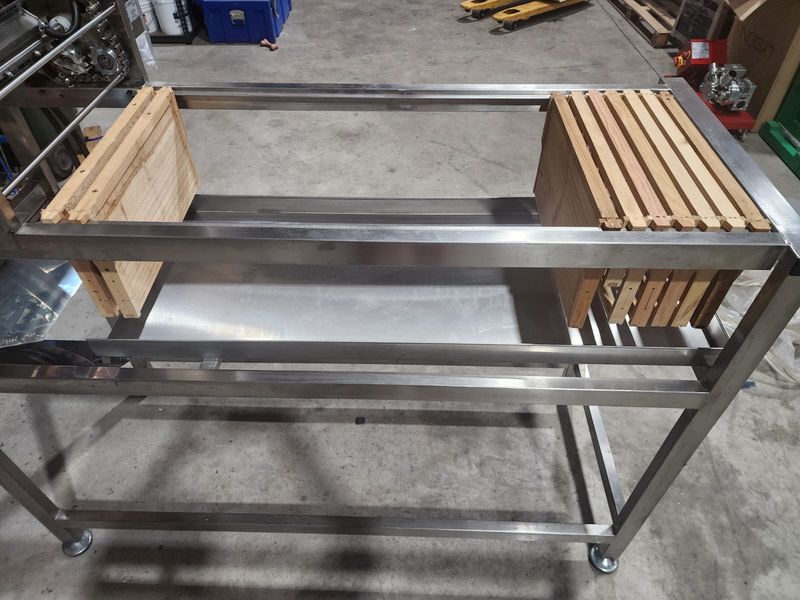

- table with chain feeder: length 2000, width 900, height 1830 mm



Uncapping capacity: 4 to 6 frames per minute
