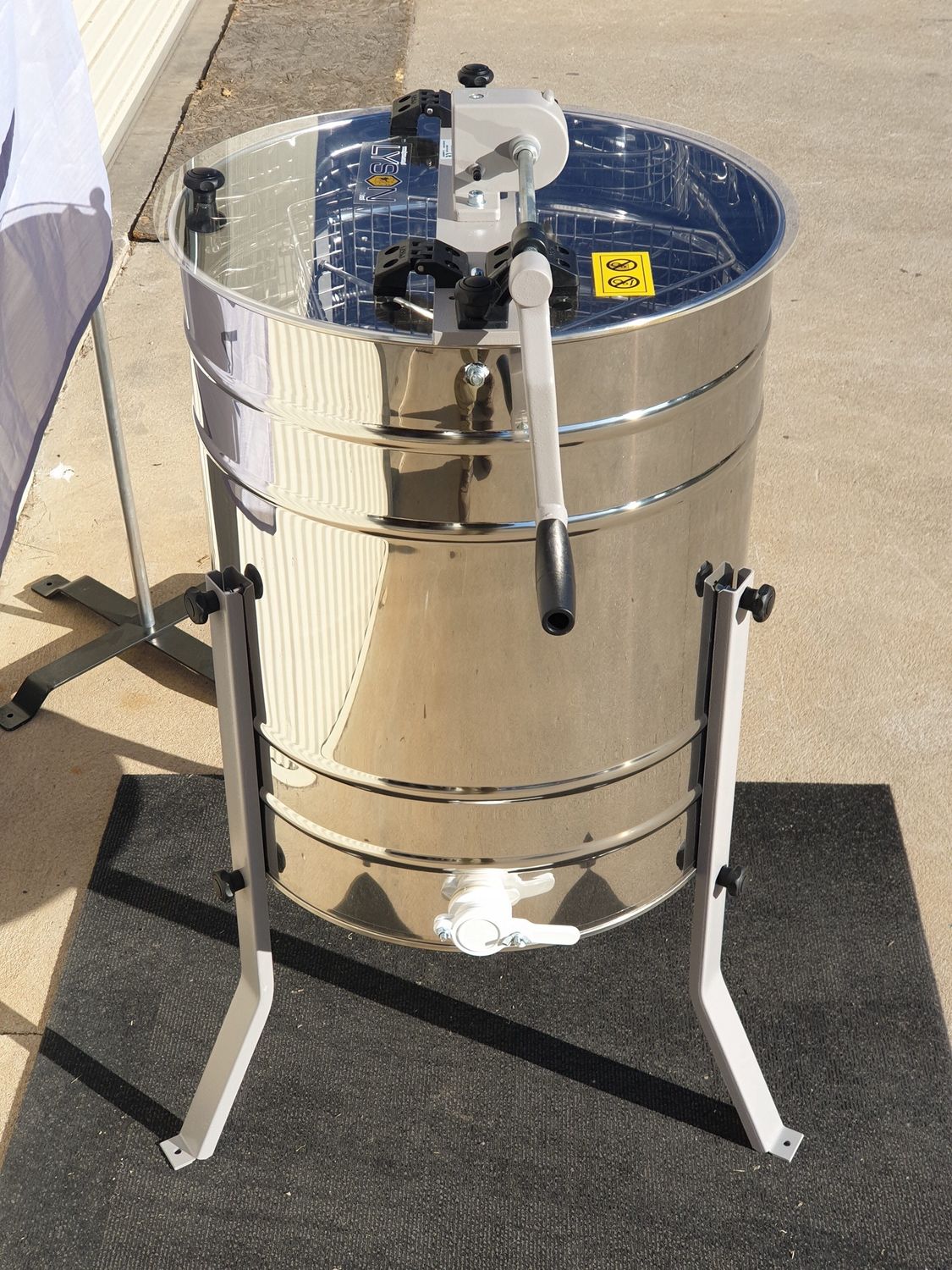

4 Frame Manual Extractor (Optima Line)

Honey extractor intended for self-assembly

The 4-frame honey extractor is the Optima version of the device used for extracting honey. This version is equipped with a manual drive with a brake. The honey extractor is quiet while working, and the drive is very easy to set in motion and stop if necessary.

The small scale of the device makes it easy to move around to store.

All tangential honey extractors, regardless of the manufacturer, require rotating the frames to spin the honey on both sides of the frame. Tangential and cassette extractors protect the frames from damage, and are suitable for spinning most honey varieties. It is easy for even beginner beekeepers to use.

The bottom has been profiled to force the honey to flow down quickly to the drain valve. As a result, honey extraction and washing of honey extractors is simple.

All elements of honey extractors in contact with honey are made of food grade materials.

Advantages of a 4-frames Tangential Honey extractor Optima Line to suit Langstroth frames:

- it contains 4 large Langstroth frames

- light and handy (the diameter of the drum measures only 50 cm)

- very easy to use

- it does not require access to electricity

- manual drive with brakes

- quiet work

- transparent, secure cover

- funnel-shaped bottom

- legs and horizontal bar reinforced powder coated

- meets sanitary and hygienic requirements

- the construction of the basket protects the frames from breakage

- a set of tools necessary for assembly included

- spare parts are easily accessible, e.g. valves, hinges

- affordable and good quality

- stainless steel gate valve

- made in Poland

The drum - has a diameter of 500 mm and is made of 304 acid-resistant stainless steel.

Honey extractor basket - made of stainless, acid-resistant rods, arranged in a way that protects the frames against breaking slices during spinning. Mesh size 20x20 mm.

A manual drive - with a brake mounted on the top beam of the honey extractor allows you to work in conditions where there is no access to electricity.

Valve - stainless 6/4 ".

Cover , made of meta-plexiglass, making it possible to observe the spinning process without the necessity to open the honey extractor and risk contact with the rotating basket.

The beam and legs - powder coated, which increases the resistance of the coating.
