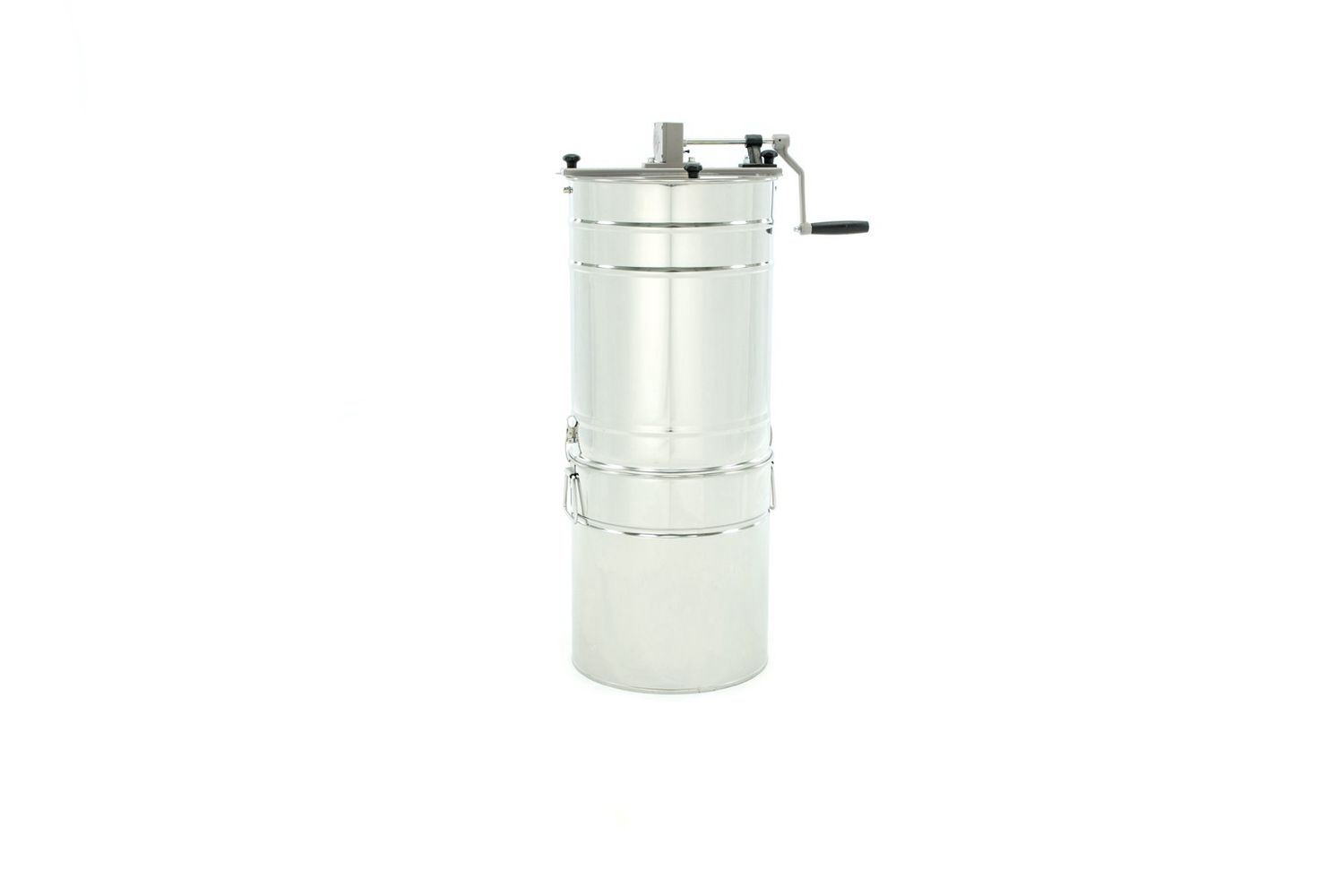

Honey extractor, 2 honey frames (universal basket), manual drive, with a sieve and stainless settler, Ø 400 mm – MINIMA
The Lyson 2 frame extractor with settling tank and sieve, model W233B_OM, is a manual honey extractor designed for small-scale beekeeping operations. This model is part of the MINIMA line, which is intended for beekeepers who are either just starting out or have a small number of hives. It is a tangential extractor, meaning that the honeycombs are placed parallel to the drum wall and spun on one side before being turned over to spin the other side. Honey can be transferred or bottled using the gate valve in the bottom of the settler.
The extractor is equipped with a universal basket that can accommodate 2 honey frames. It has a manual drive and features a drum diameter of 400 mm. The construction of the extractor includes a stainless steel settler and a sieve that sit underneath the extractor, which serve to gently filter and settle the honey during the extraction process. The honey extractor is quiet while working, and the drive is very easy to set in motion and stop if necessary.
All tangential honey extractors, regardless of the manufacturer, require rotating the frames to spin the honey on both sides of the frame. Tangential and cassette extractors protect the frames from damage, and are suitable for spinning most honey varieties. It is easy for even beginner beekeepers to use.
Honey extraction and washing of honey extractor is simple with warm water and food grade detergent.
All elements of honey extractors in contact with honey are made of food grade materials.
Features of a 2-frames Tangential Honey extractor Minima Line to suit Langstroth frames:
- it hold 2 full-depth Langstroth frames
- light and handy (the diameter of the drum measures only 40 cm)
- very easy to use
- it does not require access to electricity
- manual drive with brakes
- quiet work
- transparent, secure cover
- funnel-shaped bottom
- legs and horizontal bar reinforced powder coated
- meets sanitary and hygienic requirements
- the construction of the basket protects the frames from breakage
- a set of tools necessary for assembly included
- spare parts are easily accessible, e.g. valves, hinges
- affordable and good quality
- made in Poland

Honey extractor with a small drum diameter, characterized by the versatility of being able to spin virtually all types of frames.
A characteristic feature of the tangential extractor is the need to turn the frames.
Diagonal extractor are intended for beekeepers with smaller apiaries.
Drum with a diameter of 400 mm made of 0H18N9 acid-resistant stainless steel.
Basket of honey extractors, made of stainless, acid-resistant rods, arranged in a way that protects the frames against breakage of the slices during centrifugation. The mesh size is 20x40 mm.
The manual drive with the brake is mounted on the upper beam of the honey extractor, it enables work in conditions where there is no access to electricity.
6/4" plastic valve
Transparent cover, made of meta-plexus, giving the opportunity to observe the spin process without opening the honey extractor and risking contact with the rotating basket.
